SIMATIC IPC BX-32A – OPTIMIZED BOX IPC

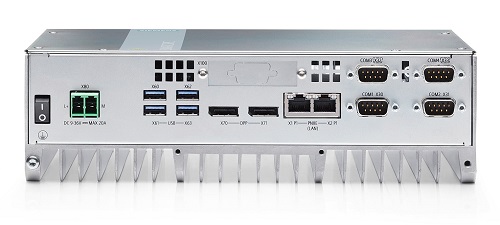

SIMATIC IPC BX-32A (Box IPC)





SIMATIC IPC BX-32A is the cost- and function-optimized alternative to SIMATIC IPC BX-39A and offers machine, plant and control cabinet manufacturers a powerful, compact PC platform for machine- and process-related use or use in industrial environments.





Key IPC BX-32A Benefits


  • Significant increase in performance compared to the IPC427E generation (with Intel Core-i technology, 11th Generation)
  • Flexible mounting options and all ports on one side
  • Fan-free and maintenance-free with small footprint and high industrial functionality
  • High system availability and ruggedness






The spectrum of applications of the embedded IPC ranges from automation computers fully integrated into TIA, to C/C++-based automation solutions, to "standalone" applications in general IT use.  The SIMATIC IPC BX-32A delivers high system performance for demanding computing, open and closed-loop control and visualization tasks.




SIMATIC IPC BX-32A at a glance

  • Fast data processing for high productivity
    • 11th generation Intel processors
    • With 2 different processors – Intel Celeron and Intel Xeon
    • DDR4 up to 32 GB
  • Maximum compactness and robustness for use directly on the machine
    • Low mounting depth for space-optimized installation
    • Rugged enclosure concept for use in ambient temperatures up to 50 °C
  • Industrial functionality and flexibility for implementing embedded solutions
    • 2 x LAN 10/100/1000 Mbps connections
    • Onboard PROFINET interface
    • 4 x high-speed USB 3.2 Gen 2 ports; up to 4 serial ports (optional)
    • Flexible mounting and installation options (DIN rail, wall, Book montage)
    • Simple expansion capability (1 x PCIe slot, 1 x M.2 slot)
    • On/off switch
  • High system availability - reducing the risk of potential failures and maintenance costs
    • No rotating parts (fans, hard disks) make it maintenance-free
    • Operation without battery possible
    • System-tested SIMATIC software


+ - Industry-compliant design Click to collapse

  • Up-to-date industrial design
  • Various mounting positions (DIN rail, wall mounting, portrait mounting)
  • Very compact housing
  • All ports on one side



+ - Ideal for applications in industrial environments Click to collapse

  • Excellent operational reliability – even when subjected to extreme vibration and shock
  • Operation without battery possible, no rotating parts (hard disk, fan)
  • Reduced down times and early error detection through self-diagnostics



+ - High degree of investment protection (reducing engineering costs) Click to collapse

  • High continuity of components for long-term machine components
  • Service and support period of 8 to 10 years after market launch
  • PC development and manufacture (including motherboard and BIOS) by Siemens
  • Assured availability of spare parts (for a period of 5 additional years following the end of active marketing)



+ - High level of flexibility Click to collapse

Due to:

  • Expandability through various interfaces (e.g. 1 x PCIe, 2 x DisplayPort, 2 x GBit Ethernet, 1 x M.2)
  • 4 x USB 3.2 Gen2 ports for simple and quick connection of additional hardware components
  • Full PC Openness through Windows 10 IoT Enterprise 20221 LTSC
