SIMATIC IPC PX-32A – OPTIMIZED, EMBEDDED PANEL IPC

SIMATIC IPC PX-32A (Panel IPC)

The SIMATIC IPC PX-32A is the cost- and function-optimized alternative to SIMATIC IPC PX-39A and offers machine, plant and control cabinet manufacturers a powerful, compact PC platform for machine- and process related use or use in industrial environments.

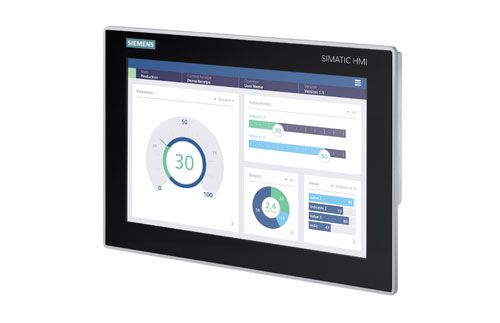

The SIMATIC IPC PX-32A is a fan-free embedded panel PC for visualization and control tasks with single-touch display. It is maintenance-free and can be configured, integrated, and commissioned flexibly and simply. With its rugged metal enclosure, it can withstand even severe mechanical stress.








SIMATIC IPC PX-32A at a glance

Fast data processing for high productivity

  • 11th generation Intel processors
  • Scalable with 2 different processors – from Intel Celeron to Intel Xeon
  • DDR4 up to 32 GB

Highly flexible mounting for space-saving installation

  • Low mounting depth (ambient temperature up to 50 °C)
  • Installation in control cabinets and consoles, 19" cabinets/racks

High degree of industrial functionality and flexibility for implementing embedded solutions

  • Brilliant single-touch displays in widescreen formats 12", 15", 19", 22"
  • Flexible operating design and installation (landscape or portrait)
  • 2 x LAN 10/100/1000 Mbps connections
  • Onboard PROFINET interface

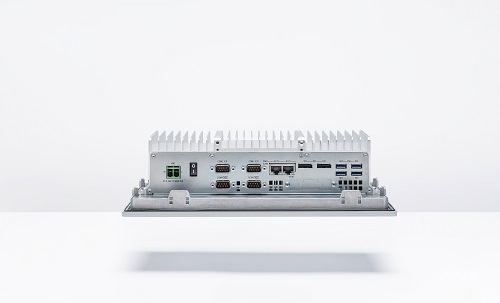

  • 4 x high-speed USB 3.2 Gen 2 ports at back; up to 4 serial interfaces (optional)
  • Can be expanded easily through 1 x M.2 slot
  • On/off switch

High system availability in order to reduce the risk of potential failures and maintenance costs

  • Maintenance-free because of no rotating parts (fans, hard disks) and operation without battery possible
  • System-tested SIMATIC software

High investment security in order to reduce engineering costs

  • Long-term availability: Service and support period of 8 to 10 years after market launch
  • Compatibility with regard to installation and interfaces



+ - Industry-compliant design Click to collapse

  • Up-to-date industrial design
  • Various mounting positions (DIN rail, wall mounting, portrait mounting)
  • Very compact housing
  • All ports on one side



+ - Ideal for applications in industrial environments Click to collapse

  • Excellent operational reliability – even when subjected to extreme vibration and shock
  • Operation without battery possible, no rotating parts (hard disk, fan)
  • Reduced down times and early error detection through self-diagnostics



+ - High degree of investment protection (reducing engineering costs) Click to collapse

  • High continuity of components for long-term machine components
  • Service and support period of 8 to 10 years after market launch
  • PC development and manufacture (including motherboard and BIOS) by Siemens
  • Assured availability of spare parts (for a period of 5 additional years following the end of active marketing)



+ - High level of flexibility Click to collapse

Due to:

  • Expandability through various interfaces (e.g. 1 x PCIe, 2 x DisplayPort, 2 x GBit Ethernet, 1 x M.2)
  • 4 x USB 3.2 Gen2 ports for simple and quick connection of additional hardware components
  • Full PC Openness through Windows 10 IoT Enterprise 20221 LTSC
