SINAMICS S200 servo drive system is an optimized and efficient solution. Comprised of the SINAMICS S200 drive, a SIMOTICS S-1FL2 servo motor and Motion Connect cables, the package has a power range extending from 0.1 to 7kW. With various communication options such as PROFINET IRT and pulse train, the system has been specifically designed to address a spectrum of standard applications.
It provides a cost-efficient solution that delivers the optimal balance of price and performance. Further, in conjunction with a digitalization concept, hardware and software are perfectly harmonized to equip you for the future.
Higher productivity, improved efficiency
but at a lower cost
Performance optimized
Response optimized
with fast current controller cycle as well as PROFINET IRT communication to controllers
with up to 350% overload capacity
with up to 21 bits high-resolution encoderEasy to use
Reduced space
due compact system design
with integrated holding brake control and brake resistor
via Webserver and SINAMICS Startdrive
with global standards and certificationsFit for the future
Fit for your applications
via flexible hardware solutions and complete TIA offering
on machine simulation with SINAMICS DriveSim
by providing reliable protection and secure access to your automation processes
Typical applications
The system offers dependable and precise positioning performance for a wide range of applications.
The system is the ideal solution for both basic and high-speed conveyor systems.
The system is the ideal choice for processing applications that demand precise speed and torque control.
- Automated assembly machines
- Glass, woodworking, ceramic production
- Intralogistics and material handling (Robots - AGVs)
- Laboratory automation
- Packaging
- Printing technology
Building your ideal servo drive system
From the ideal servomotor, the optimum servo drive, with suitable cables and connectors to the right controller, follow the simple steps below to arrive at the perfect configuration for your specific application.

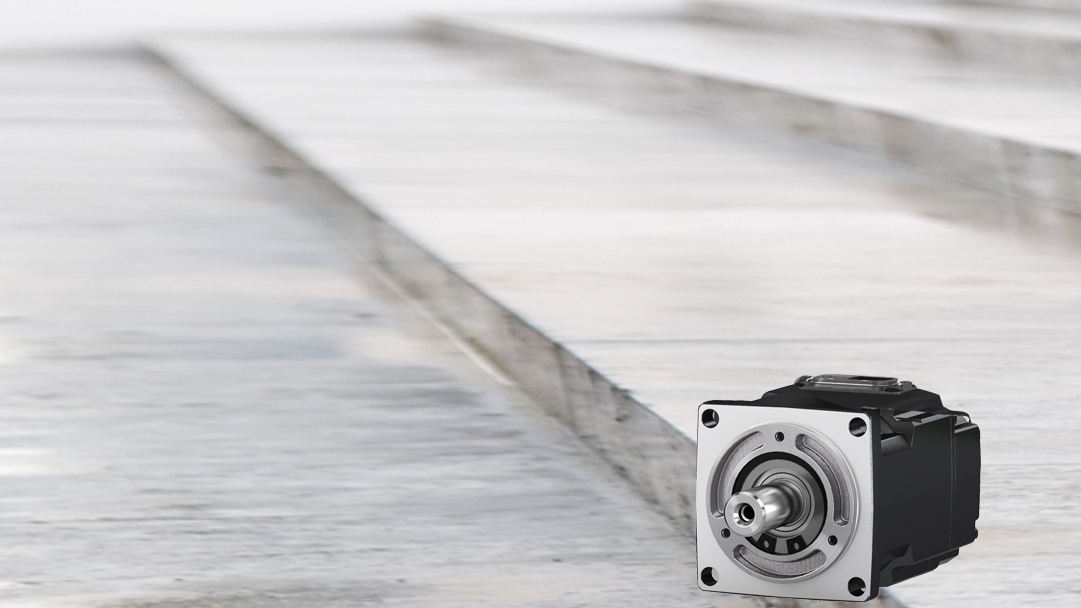

Experience precise performance with SIMOTICS S-1FL2 servo motors. Equipped with a high-resolution encoder with up to 21 bits, it responds to extremely small speed or position deviations, ensuring smooth and precise control in standard applications. Together with a no-battery design, it helps customers increase productivity and reduce maintenance costs. Advantages › Learn more about SIMOTICS S-1FL2 motors

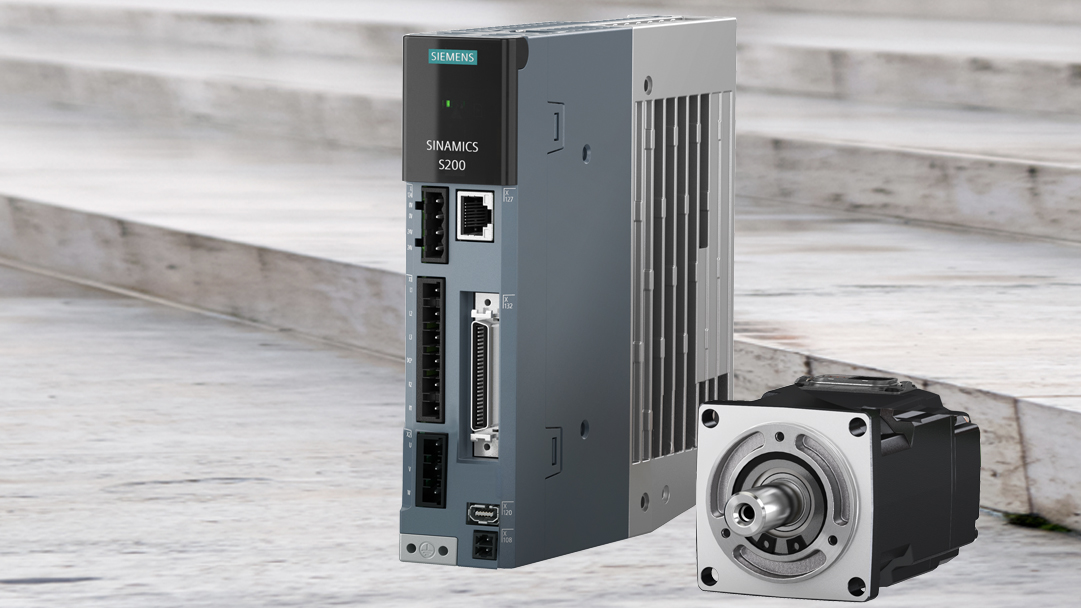

Integrating the servo drive into your existing system is a seamless experience, consisting of a basic or standard version to meet various needs of applications and work perfectly together with SIMATIC controllers.

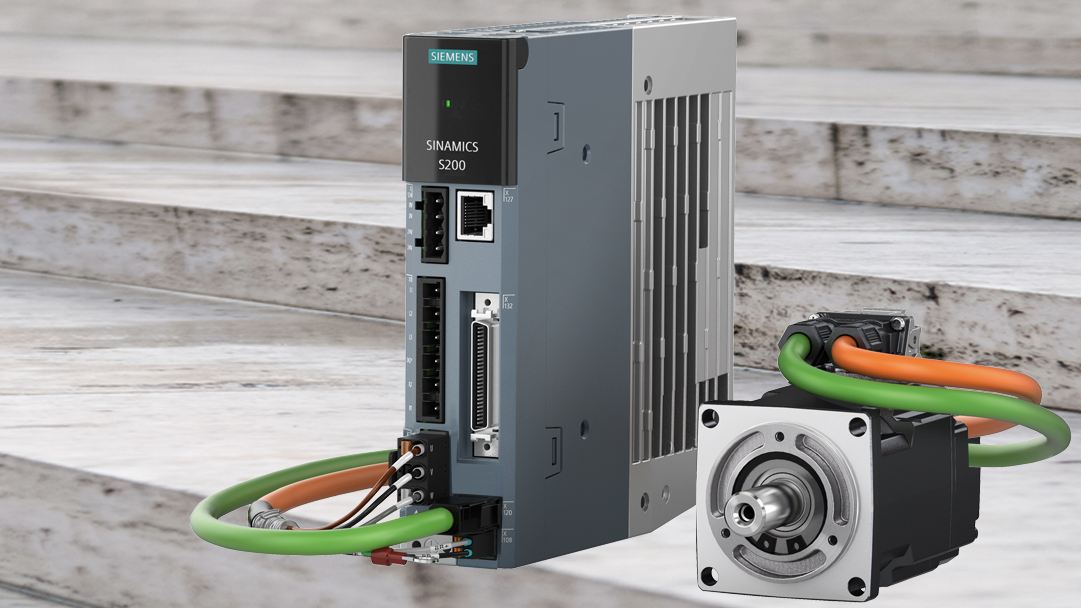

Easy and secure installation happens with one-push-lock connection technology, designed specifically for shaft height 20, 30, and 40 motors. Available in standard and flexible versions, MOTION-CONNECT cables are optimized to deliver effortless and reliable connectivity.

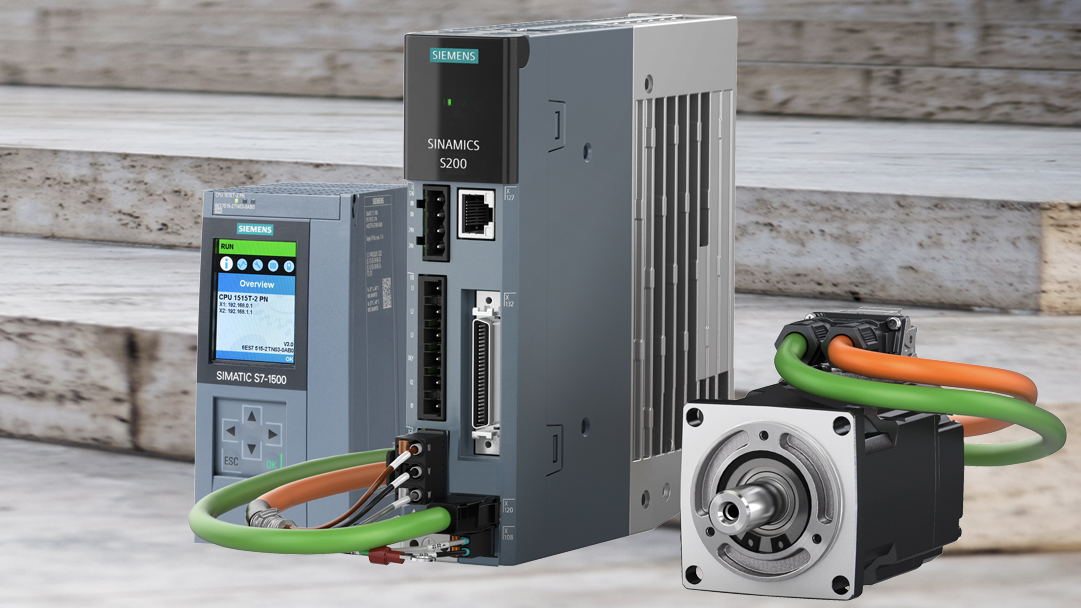

From the SIMATIC controller to the SINAMICS servo drives and SIMOTICS servo motors, the motion control system is optimally coordinated to meet diverse motion control requirements.
SIMOTICS S-1FL2 with dynamic performance
SINAMICS S200 with optimized performance and options for versatility
MOTION-CONNECT 350 and 380 for ease of use
› More about cables for SINAMICS S200 / SIMOTICS 1FL2
A scalable system easily adapted to your needs
