WAGO’s single and multi-channel Electronic Circuit Breakers provide reliable protection against overloads and short circuits while providing a high switch-on capacity with an electronic relay.
- Available in single channel (.5A to 8A with adjustable or fixed settings)
- 4-Channel and 8-Channel with 1-10A circuit protection per channel
- Option to bind two channels together for up to 16A circuit protection
WAGO Electronic Circuit Breaker (ECB) Overviews

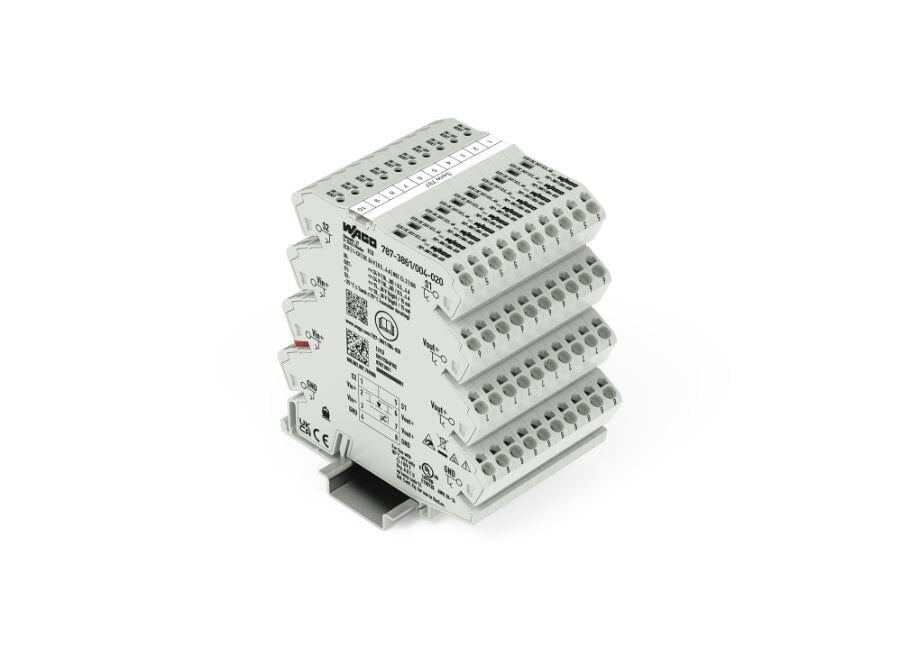

WAGOs next generation 24 VDC, 1-channel ECBs improve operations and offer significant cost savings for customers. New in the 787-3861 family is the ability to configure the S2 output on ALL variants and to report 7 different states including triggered or manually switched off along with early load warnings. These devices no longer have a hard to open cover to access the manual reset wheel, offering an indented button to be operated with a tool. On adjustable units, the current limit can be set via discrete setting wheel instead of a sequence of inputs through the manual input wheel, making it much easier to set and identify current settings. Advantages:

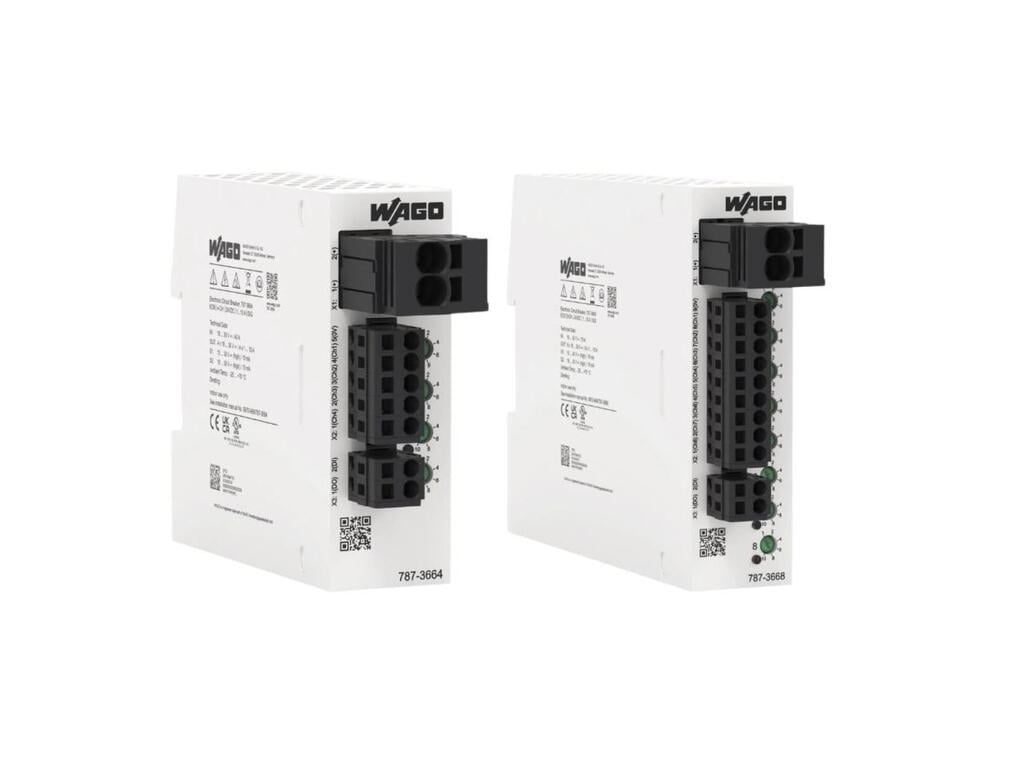

WAGO’s Next Generation Multi-Channel ECB offering improves channel density and offers even higher current circuit protection. Each configuration takes up just 32 mm on the DIN Rail. 1 to 10 A circuit protection per channel with the option to bind two channels together where 16 A circuit protection can be achieved. Advantages:

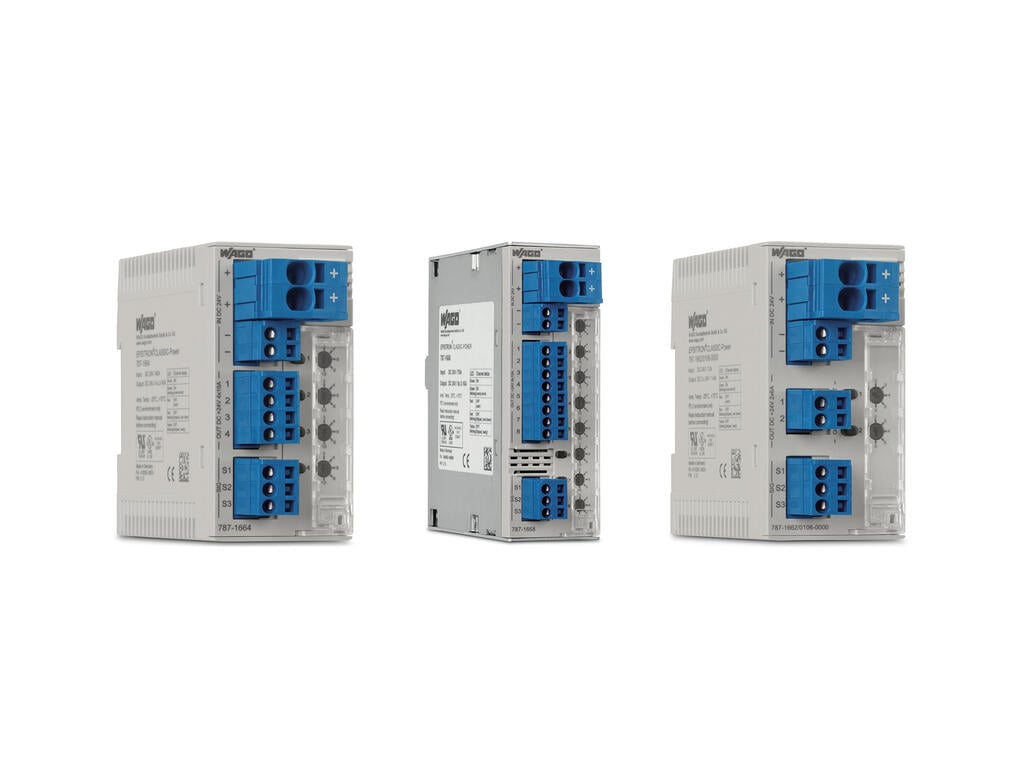

WAGO’s space-saving ECBs come in two, four, or eight-channel protective switches with currents adjustable from 0.5 to 12 A, providing reliable protection with a superior price/performance ratio. They offer outstanding features and reliable protection against overload and short circuits. With a maximum width of 45 mm (1.772 inches), these ECBs feature high channel density to save space in the control cabinet. Advantages:

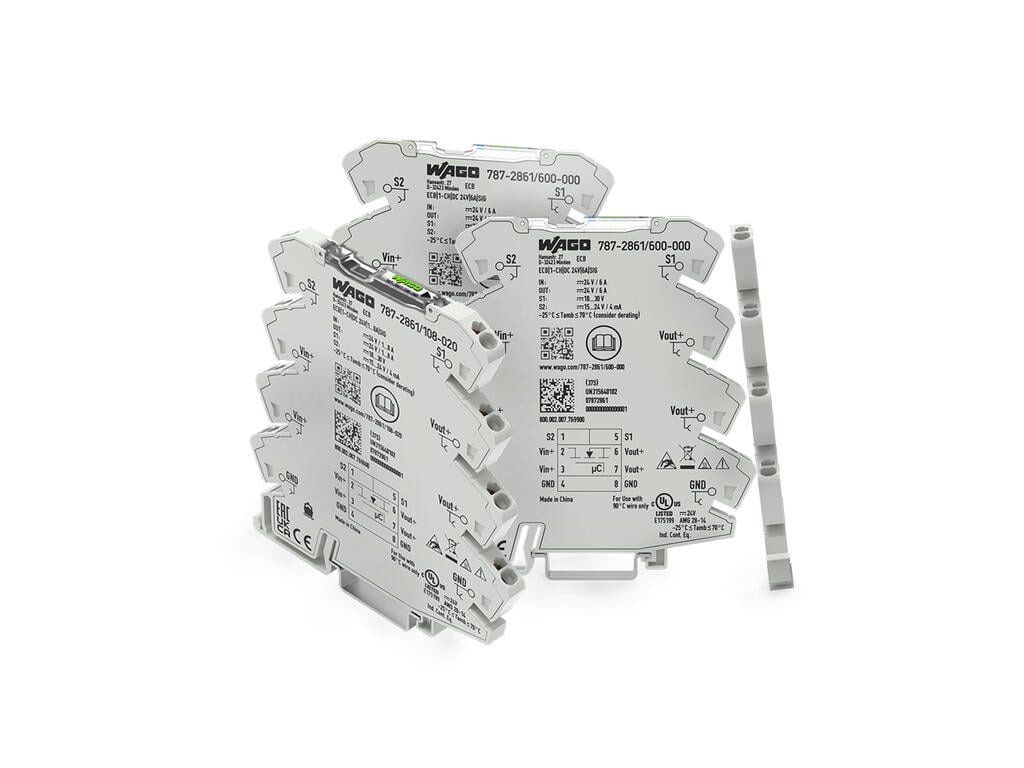

These 24 VDC modules are just 6 mm (0.236 inch) wide, making them the slimmest ECBs currently available. They are approximately 66% smaller than miniature circuit breakers, saving even more space, particularly when used in control cabinets. These ECBs enable high-capacity loads greater than 50,000 µF to be switched on – helping you reduce false tripping due to inrush currents. Advantages:
Six fixed and two adjustable rated current versions from 0.5 A to 8 A
High switch-on capacity: > 50,000 µF
High switch-on capacity: > 50,000 µF
Seven versions available for rated currents of 0.5 A to 8 A
Brochure – Compact Electronic Circuit Breakers
The Future of DC Circuit Protection...Today
