SINAMICS G220 – High-performance variable frequency drive for all industries

SINAMICS G220 is designed to meet current and future challenges in virtually every industry. Incorporating improved hardware and software, SINAMICS G220 takes digital drive technology to a new level, making applications more efficient, secure and future-proof.









Meet Current and Future Challenges in Motion Control

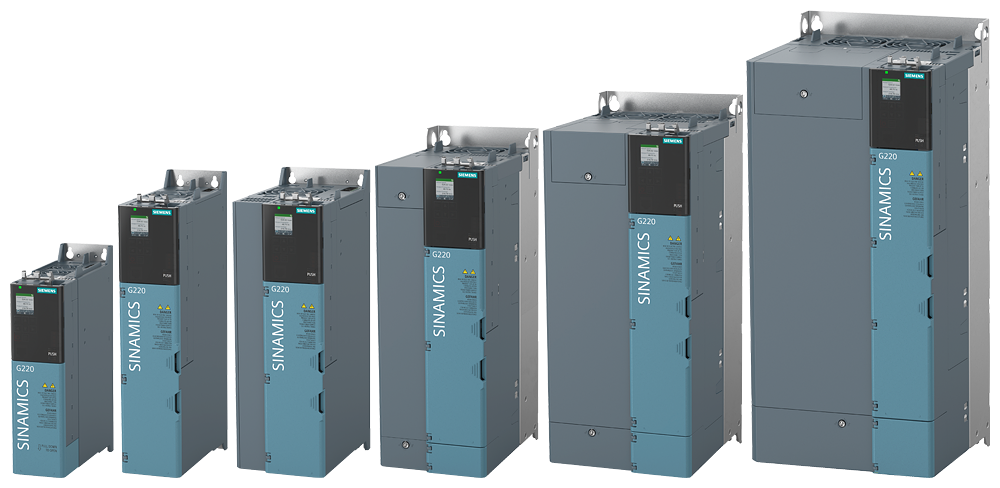

SINAMICS G220



The multipurpose drive

Developed for a broad variety of industries and needs, SINAMICS G220 is able to fulfill specific requirements with flexible hardware and software options.

Highlights

  • Increase transparency by exchanging high frequency data between the drive and Industrial Edge using the optional IIoT module
  • Improved application performance via SINAMICS software options like Safety Extended and Motor Control Extended

SINAMICS G220 Clean Power

The low-harmonics drive

Featuring an integrated Active Infeed Unit, SINAMICS G220 Clean Power reduces line harmonics.

Compact space-saving design
The smallest low harmonics drive in the market!

Clean Power technology THDi < 2%
Total Harmonic Distortion (current)
Complies with the strictest harmonic standards

Near Unity Power Factor
Under almost any load condition





Highlights

  • Reduce system losses in cables and transformers, permitting a utilization rate of up to 100%
  • Protect the main connection from harmonics
  • Extend the lifespan of motors and equipment by stabilizing the output voltage


Unlock the Secrets of Harmonics in Power Systems »





Innovation in Every Detail

Thanks to a broad range of innovative features, SINAMICS G220
can now master tomorrow's challenges in all industries.



+ - Efficient Click to collapse

SINAMICS G220 increases productivity and energy efficiency while in operation. This reduces both operating costs and CO2.

  • Optimize energy consumption with ultimate Clean Power technology in low harmonics (THDi < 2%) and enhanced high-efficiency motor control.
  • Engineering tools like SINAMICS Startdrive and the integrated web server shorten selection and commissioning times.
  • The drive system’s integration into TIA Portal allows optimized workflows and increased productivity.

+ - Safe & Secure Click to collapse

To keep your machines running smoothly, SINAMICS G220 includes comprehensive functions for machine safety and cybersecurity. Protect personnel and plants with Safety Integrated. Keep your systems and data safe with Security Integrated.

  • Protect access to automation processes with Security Integrated functions, User Management & Access Control.
  • Safety Integrated functions up to SIL 3 (Safety Integrated Level), PL e (Performance Level) and Category 4 according to IEC 62061 and ISO 13849-1 standards ensure that machines comply with the highest safety requirements.
  • S2 System redundancy, UL Type 12 / IP55 protection and Class 3C3 coating guarantee the availability of your system, even in harsh environments.

+ - Future-proof Click to collapse

SINAMICS G220 offers digital tools and services to streamline processes in each phase, saving time and costs. Its additional hardware modules and its expandable software portfolio ensure your business is equipped for the future.

  • The digital twin allows you to design, commission, and optimize your application, accelerating time-to-market.
  • Cloud and Edge monitoring and diagnostics boost system reliability.
  • Hardware and software options as well as a seamless system portfolio maximize flexibility to meet market needs.






The Perfect Fit for All Industries

Thanks to its modular comprehensive features and innovative design, SINAMICS G220 can be implemented in moving, processing, pumping, ventilating, compressing and positioning applications while meeting even the most stringent requirements.



+ - Food & Beverage Click to collapse

With SINAMICS G220, we provide the food and beverage industry with a drive solution that allows them to meet individual customer requirements quickly, flexibly and in the highest quality. In addition, the drive ensures that all processes are energy-efficient and reliable.

+ - Pharmaceutical Industry Click to collapse

The pharmaceutical industry is characterized by fast changes and requires a drive system that can match this pace. Thanks to its flexible design, SINAMICS G220 can be easily adapted to changing requirements. Its communication redundancy and security enable reliable production for users while energy efficiency gives users a competitive edge.

+ - Chemicals Click to collapse

Applications in the chemical industry need to be robust, reliable and safe—and the same applies to the drive systems. SINAMICS G220 offers Class 3C3 coating and UL Type 12 / IP55 protection, making it fit for use in harsh environments. To further increase reliability, SINAMICS G220 supports S2 redundancy.
+ - Oil & Gas Click to collapse

High levels of efficiency and safety are crucial in the oil and gas industry—SINAMICS G220 can fulfill both requirements. Security Integrated ensures system availability and Safety Integrated functions keep people and machines safe, even in ATEX environments.
+ - Marine Click to collapse

Harmonics need to be strictly limited in the marine industry, which is why SINAMICS G220 Clean Power is the ideal drive solution for auxiliary applications, such as deck machinery or winches. It reduces harmonics in compliance with IEEE 519 and thereby also lowers system losses, increasing the energy efficiency of applications and improving their environmental footprint.



Suitable for a Variety of Applications

Due to its versatility, SINAMICS G220 can be used not only in various industries, but also in a variety of applications.

+ - Pumping, ventilating and compressing Click to collapse


SINAMICS G220 is the drive for simple as well as highly dynamic conveyor belts and stacker cranes.

+ - Moving Click to collapse


SINAMICS G220 is the drive for simple as well as highly dynamic conveyor belts and stacker cranes.
+ - Processing Click to collapse


SINAMICS G220 is the drive for continuous processes with high speed and torque accuracy.
+ - Positioning Click to collapse


SINAMICS G220 is the drive for the positioning of individual or multiple coordinated axes.




Efficient Selection and Easy Commissioning

The drive system is equipped with an integrated web server enabling efficient setup,
fast diagnostics and easy maintenance from your smart phone, tablet, or laptop...
SINAMICS G220 is also fully integrated into Startdrive TIA Portal reducing commissioning time.

Selection tools

Commissioning tools

  • The integrated web server ensures efficient set-up, diagnostics and maintenance – in combination with clients such as SINAMICS SDI Standard, SINAMICS SDI Pro 5.5", SINAMICS Smart Adapter for Wi-Fi connection and more.
  • SINAMICS Startdrive in TIA Portal supports step-by-step commissioning and integrating the system in the automation environment.
  • SIMATIC PCS 7/neo/FDI readies your plant for the future – with more security, proactive lifecycle management and innovative plant engineering

Starter Kit

Highlights of the SINAMICS G220 Starter Kit include: All-in-one package. Includes all required components in one convenient package. Simplifies and streamlines your ordering process. Special price. A cost-effective start with unlimited potential.

Your Cost-Effective Start to Unlimited Potential

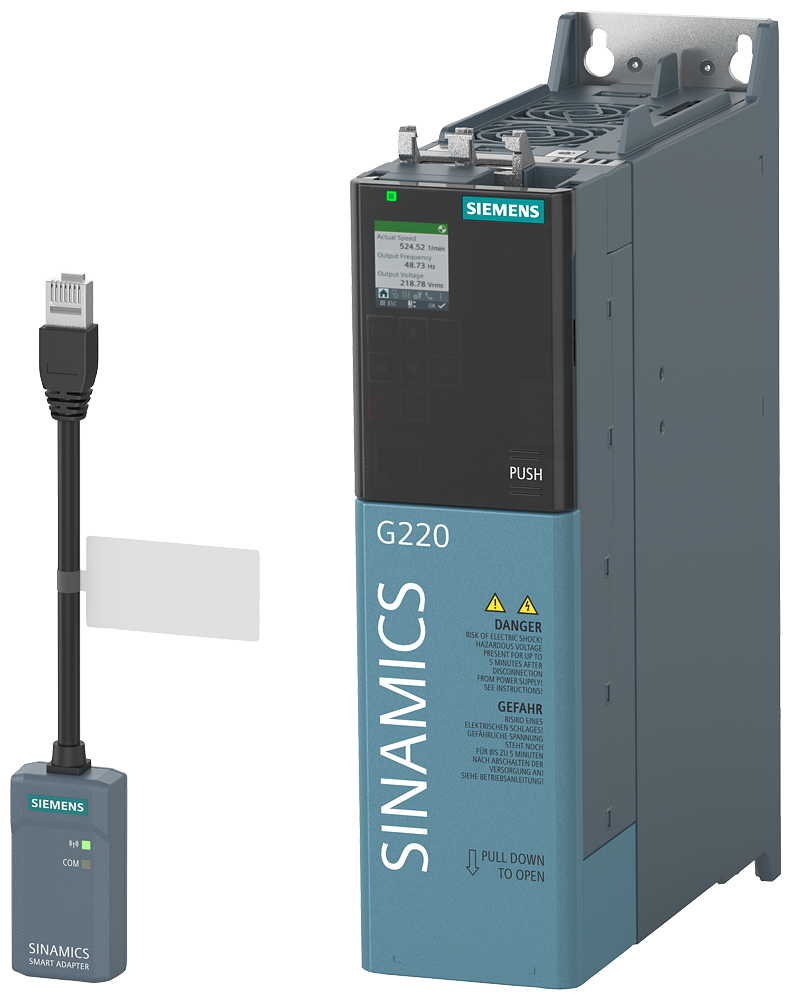

SINAMICS G220 GP-1

  • SINAMICS G220 drive, 200V–240V 3AC, IP 20 /UL Open Type,
    2.2 kW, FSA, without integrated filter
  • SINAMICS Smart Adapter



SINAMICS G220 GP-2

  • SINAMICS G220 drive, 380V–500V 3AC, IP 20 /UL Open Type,
    4 kW, FSA, with integrated line filter Category C2 (removable)
  • SINAMICS Smart Adapter

Contact Your IES Team
to Get Your Specially Priced Starter Kit

Extendable Warranty



Discover more
