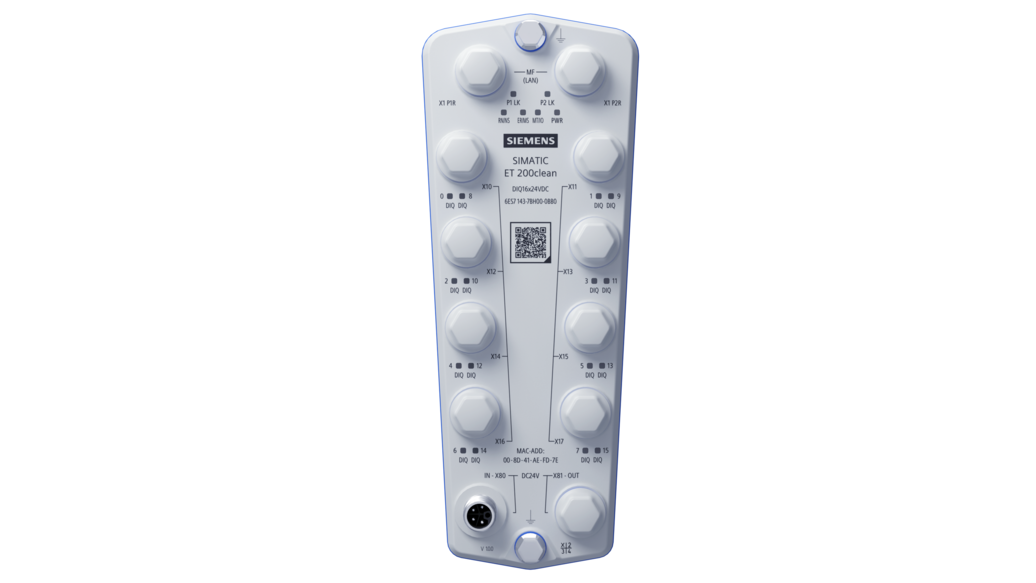

SIMATIC ET 200clean is the ideal peripheral solution for demanding, hygiene-sensitive areas of application such as the food, pharmaceutical and packaging industries.
- Smooth, gap-free design & IP69K rating for frequent high-pressure and high-temperature washing
- Modular Architecture for easy configuration and quick replacement of components
- Seamless integration into the TIA portal for easy engineering.
TSIMATIC ET 200clean is the ideal solution for demanding and high-availability applications. Early fault detection and safe shutdown of drives guarantee you a stable production process. It can also be used in high-availability production systems.Optimal cleanability
The special housing design enables hygienic 360° cleaning. This effectively removes impurities and prevents germs. This ensures the cleanliness of your appliance and optimum protection against potential health risks.High flexibility
The system functions of the devices enable seamless integration into your system and can be adapted to a wide range of requirements, such as different automation structures, fieldbuses and controllers.More reliability
The CM IO-Link communication module enables data exchange with up to 4 IO-Link devices. With the IO-Link specification V1.1, the current device and master parameters can be automatically transferred to the IO-Link device in the event of a device replacement – without additional application effort.
SIMATIC ET 200clean – System features
Hygienic
- Thanks to the 360° cleaning capability, you can ensure that all hygiene requirements for food safety are reliably met
- The IP69K protection class guarantees you tightness during the cleaning process so that dirt, dust or germs cannot penetrate sensitive devices or disrupt production processes
- As the housing material is chemically resistant, you can use commercial cleaning agents and disinfectants without hesitation
Flexible
MultiFieldbus enables flexible use with different fieldbuses and Ethernet controllers- The high-performance M12-L power connector enables higher current on the line and optimizes the power supply concept
- Consistent and reliable transmission of I/O data is guaranteed thanks to task-synchronous operation
- Shared device; MSI/MSO allows you to access your I/O data via two controllers
Learn more about MultiFieldbus here.
Reliable
- The effect of a short circuit remains localized and does not affect other channels, modules or system components
- Rely on early notifications thanks to the integrated monitoring of the 1L+ and 2L+ supply voltages
- Thanks to the MRP and S2 redundancy functions, your production remains on track even in the event of PN line interruptions or CPU failures
- Usage in applications and at installation locations with vibrations or accelerations is unproblematic due to the high load capacity
Identifiable
- The clear identification options such as module type, MLFB and MAC address on the front make commissioning and maintenance easier for you
- The CAx-compatible labeling of all interfaces (EPLAN) enables clear assignment to the documentation for planning, installation and maintenance
- The HW and FW status of the device can be seen on the front side
- Thanks to ID Link, technical information and data are directly available to you via the associated standardized information exchange platform
Sustainable
- ET 200clean meets and exceeds all relevant regulations, such as halogen-free, REACH and RoHS. For sustainable production and safe use
- The device can be easily dismantled and separated according to materials. The housing parts are joined together without additives, ensuring environmentally friendly disposal
If you're looking to upgrade your automation infrastructure with a hygienic, robust and reliable I/O solution, let your IES team introduce you to the SIMATIC ET 200clean!
