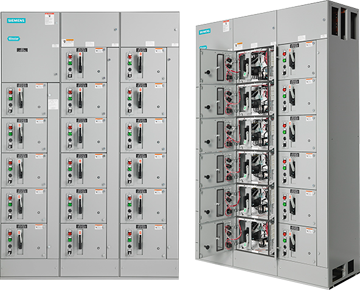

Siemens tiastar low-voltage MCCs (motor control centers) deliver exceptional performance with a range of powerful options.
Time-proven, safe, and reliable, they're engineered with Siemens state-of-the-art motor control technology, and will have you on time and on budget, no matter how customized your needs may be...
Designed to be safer, smarter, smaller, as well as easy to install and expand, tiastar MCCs allow you to:
- Lower capital equipment cost
- Lower maintenance cost
- Increase productivity
tiastar MCC options

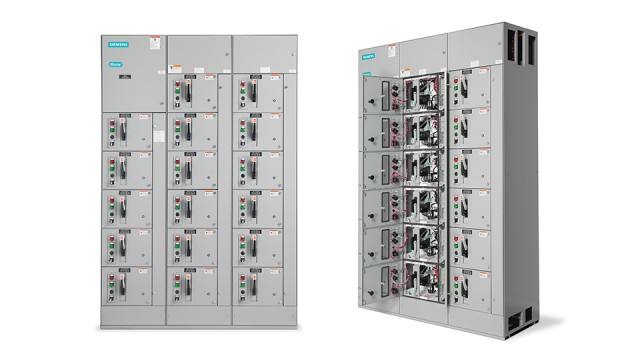

tiastar standard MCCs
Siemens tiastar standard MCCs are designed as self-contained modular units which meet UL and NEMA standards. They come with rear-mounted, self-aligning copper stabs that firmly grasp onto the bus. Brackets guide the placement of units, further assuring positive engagement with the bus. From 22 mm to 30 mm pilot devices, from direct starters to world-class drives, Siemens tiastar standard MCCs have features and options to meet many specific needs. Other options include SIERS integrated electrical-racking system via retractable stabs and Sm@rtGear power distribution solution.
- UL 845 labeling as applicable
- CSA C22.2 No. 254-05 labeling as applicable when specified
- Heavy-duty construction with up to 100 kA bus bracing
- Up to 600 V 50/60 Hz
- NEMA wiring
- Plug-in units (up to size 5 starters)
- Door/unit-mounted pilot-device panel
- High-density compact units available to reduce footprint
Learn more about tiastar standard MCCs »

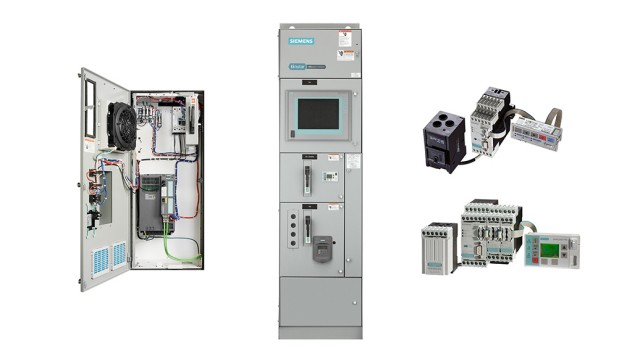

tiastar smart MCCs
Siemens smart MCCs are networked, NEMA compliant MCCs that can communicate. They incorporates intelligent devices at the unit level to control and monitor motor operation, energy consumption, and power quality. Smart MCCs rapidly communicate with programmable logic controllers (PLCs) or process control systems via a data network.
Smart MCCs are internally interconnected using communication protocols which incorporate intelligent devices such as SIMOCODE pro motor management systems, SIRIUS 3RW44 soft starters, SIMATIC PLCs, Siemens variable-frequency drives (VFDs), and other smart components. Sm@rtGear power distribution solution is also optionally available.
- Reduces wiring connections
- Improves operational diagnostics
- Simplifies installation and troubleshooting
Learn more about tiastar smart MCCs»

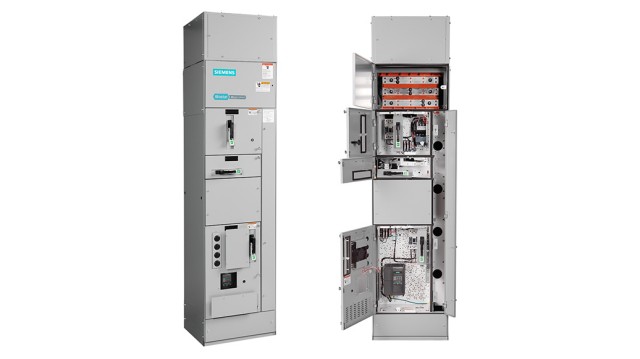

tiastar arc-resistant MCCs
Siemens type 2A arc-resistant, low-voltage motor control centers are tested in accordance to IEEE C37.20.7, which contains and channels internal arcing fault incident energy. They provide an additional degree of protection to the personnel performing normal operating duties in close proximity to the equipment while the equipment is operating under normal conditions. Type 2A accessibility means the MCCs protect the operator in front, back, and sides of the equipment.
Siemens tiastar arc-resistant MCCs showcase state-of-art overarching technology. This means one can get an arc-resistant MCC that can have various smart components with communications, and/or high-density compact units. Other options include SIERS integrated electrical-racking system via retractable stabs and Sm@rtGear power distribution solution.
- Automatic shutters
- Reinforced doors
- Insulated bus bar
- Bolted wireway
- Internal venting system
- Deflectors
- Modified pull-box with pressure flap
Learn more about tiastar arc-resistant MCCs »

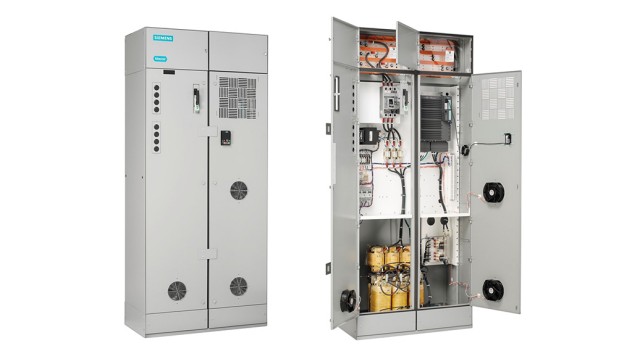

18-pulse drive
Siemens tiastar™ motor control centers with integrated 18-pulse ac drives technology offer a simple, clean power motor control solution. With a modular, open-architecture design, tiastar MCCs are rugged, time-proven, and have many features and options to meet the needs of water/wastewater applications. Engineered with integrated components to reduced line harmonics, tiastar MCCs do more than simply meet IEEE 519 requirements, they offer the high-level operating efficiency while reducing energy consumption and downtime.
Siemens tiastar arc-resistant MCCs showcase state-of-art overarching technology. This means one can get an arc-resistant MCC that can have various smart components with communications, and/or high-density compact units. Other options include SIERS integrated electrical-racking system via retractable stabs and Sm@rtGear power distribution solution.
- 18-pulse drive integrated into tiastar MCCs line-up
- Compliance to IEEE 519
- 18 pulse diode converter bridge
- Bolted wirewayIntegrated clean power patented phase-shifting transformer
- Electrical equipment and harmonic mitigation in one package
- Based on SINAMICS G120 platform
- Easy integration with smart MCCs
Learn more about 18-pulse drive technology »
