With its SIMATIC ET 200 IO system, Siemens satisfies all requirements for distributed automation in a multitude of applications: finely scalable due to its modular design, available in diverse enclosure versions to guarantee maximum durability and a comprehensive range of components from standard modules to technology modules.

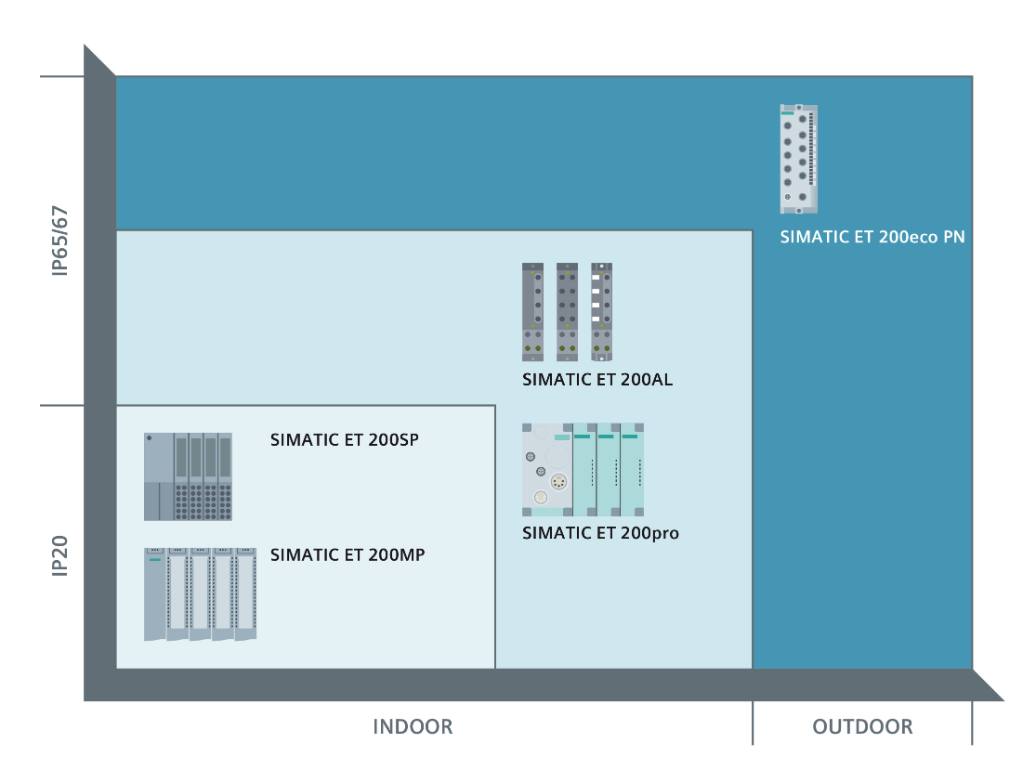

The only question here is – inside or outside?
Thanks to the diversity of types and the extensive range of modular components, the ET 200 can be installed anywhere, regardless of whether it's indoors or outdoors.
INSIDE - SIMATIC ET 200 systems for the control cabinet
The ET 200MP and ET 200SP equipment series are both ideally suited for installation in a central control cabinet or a distributed control cabinet. Designed with IP20 degree of protection, they offer outstanding functionality for CPUs, safety engineering, or technological applications.
OUTSIDE - SIMATIC ET 200 systems without control cabinets
Options are also available to you for solutions outside the control cabinet: There are three different I/O systems which stand out due to their high channel density (ET 200pro), are even suitable for installation on moving plant units (ET 200AL), or can withstand temperatures of between -40 oC and +60 oC (ET 200ecoPN).
SIMATIC ET 200 systems for the control cabinet (IP20)
Features include:
- Scalable with high channel density, up to 64 channels per module
- Distributed I/O for the Siemens PLC SIMATIC S7-1500 or distributed configuration via PROFINET or PROFIBUS
- Quick wiring thanks to push-in technology
- Active backplane bus allows hot swapping
- Reliable diagnostics
Features include:
- Extremely compact dimensions and expandability of the station with up to 64 modules
- Extensive module range (including Safety, motor starters, energy meters, DALI, etc.)
- Module replacement during operation
- Channel-precise diagnostic functions
- High-sped communication over PROFINET and isochronous backplane bus
SIMATIC ET 200 without control cabinets (IP 65/67)

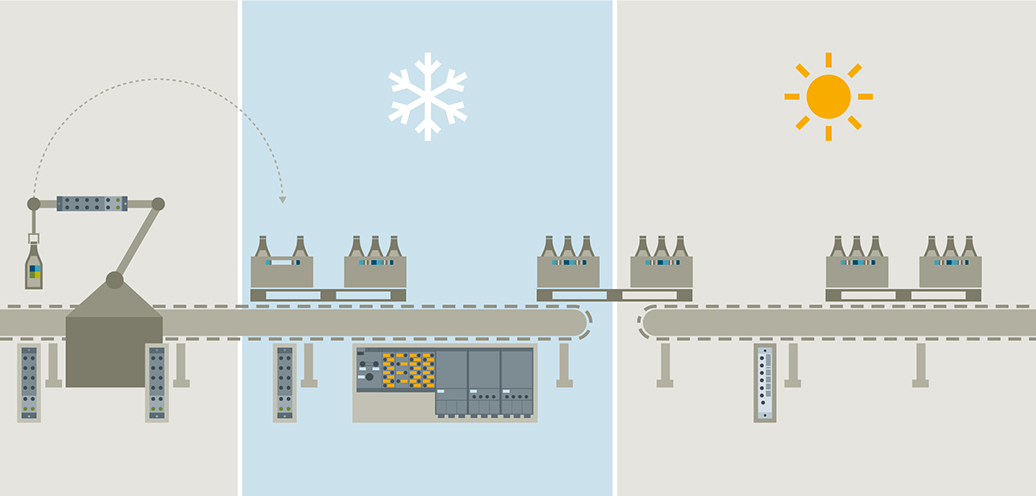

“Think outside the box!” – with flexible solutions outside the control cabinet
The SIMATIC ET 200 I/O systems with the high degree of protection IP65/67 are small, rugged, and powerful. They are ideal for use in harsh industrial environments, directly at the machine. The time-saving installation enables the most flexible implementation of automation solutions.
Your benefits at a glance:
- Flexible use without a control cabinet – thanks to high shock and vibration resistance
- Consistent plant transparency – due to IO Link V1.1 Master in all systems
- Time and cost saving – due to simple and fast mounting of modules, reduction of cabling work and fast fault location due to channel-selective diagnostics
- Optimum usability and more flexibility – due to the choice of the right system for every task
- Clear time saving in engineering – TIA Portal and option handling permit fast adaptation to an existing maximum configuration
SIMATIC ET 200AL - The rugged IO system for simple installation
SIMATIC ET 200AL in IP65/67 is specially designed for distributed control electronics in confined spaces and on the move. Thanks to the well-thought-out design, you can install the individual modules conveniently in your machine or assembly line in any position.
- Easy – The standardized engineering with the TIA Portal permits consistent system diagnostics and efficient operation.
- Flexible – SIMATIC ET 200AL can be connected to common fieldbuses, scalable and highly flexible.
- Performant – Digital outputs of the ET 200AL can be safely shut down within a supply line. This provides additional flexibility.
- Communicative – The range of supported protocols meets all possible requirements. Thanks to MultiFieldbus, you use the optimal protocol for your application.
SIMATIC ET 200pro – The multi-functional IO system in IP65/67!
SIMATIC ET 200pro can be used universally in a wide variety of industries. In particular where a detailed modular structure is demanded in harsh environments directly at the machine.
- Flexible – ET 200pro is characterized by a comprehensive range of modules. This gives you maximum flexibility to respond quickly to automation requirements.
- Compact – Thanks to the modular design, you can install ET 200pro directly on the machine without a control cabinet.
- Performant – The ET 200pro is characterized by optimal availability, high performance and available Safety Integrated functionalities.
- Communicative – The range of supported protocols meets all possible requirements. Thanks to MultiFieldbus, you use the optimal protocol for your application.
SIMATIC ET 200eco PN – The block I/O for cabinet-free setup!
SIMATIC ET 200eco PN offers you a particularly rugged I/O solution in IP 65/67 and IP69K:
- Flexible – It allows flexible configuration, simple installation and fast commissioning.
- Compact – Thanks to the practical housing form, the devices can be mounted head-on or rotated 90 degrees to the side so that you can make optimum use of your installation space.
- Robust – The zinc pressurized housing in IP65/67 and IP69K is suitable for use under especially challenging ambient conditions and temperatures of -40 °C to +60 °C.
- Communicative – The range of supported protocols meets all possible requirements. Thanks to MultiFieldbus, you use the optimal protocol for your application.
The cleanable I/O system SIMATIC ET 200clean is the ideal peripheral solution for demanding, hygiene-sensitive areas of application such as the food, pharmaceutical and packaging industries.
- Optimal Cleanability – The special housing design enables hygienic 360° cleaning. This effectively removes impurities and prevents germs.
- High Flexibility – The system functions of the devices enable seamless integration into your system and can be adapted to a wide range of requirements.
- More Reliability – SIMATIC ET 200clean is the ideal solution for demanding and high-availability applications. Early fault detection and safe shutdown of drives guarantee you a stable production process.
Stay tuned!

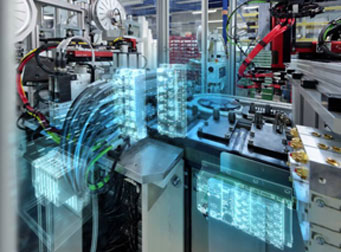

SIMATIC ET 200 – Fits anywhere
Get the right solution for your application
