With the VX SE, Rittal has devised an ingenious combination of enclosure and standalone rack technology, bringing together a host of benefits to help boost your productivity.
Find the AX too small and the TS 8 / VX25 too large for your needs?
The VX SE free-standing enclosure system is an effective alternative that is ideal for situations where an AX compact enclosure is not big enough, but you don’t need a TS 8 / VX25 enclosure baying system.

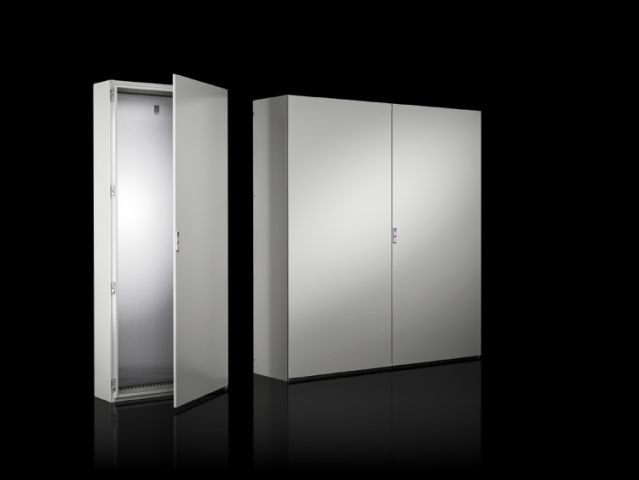

VX SE enclosure – the simple and safe
free-standing enclosure system

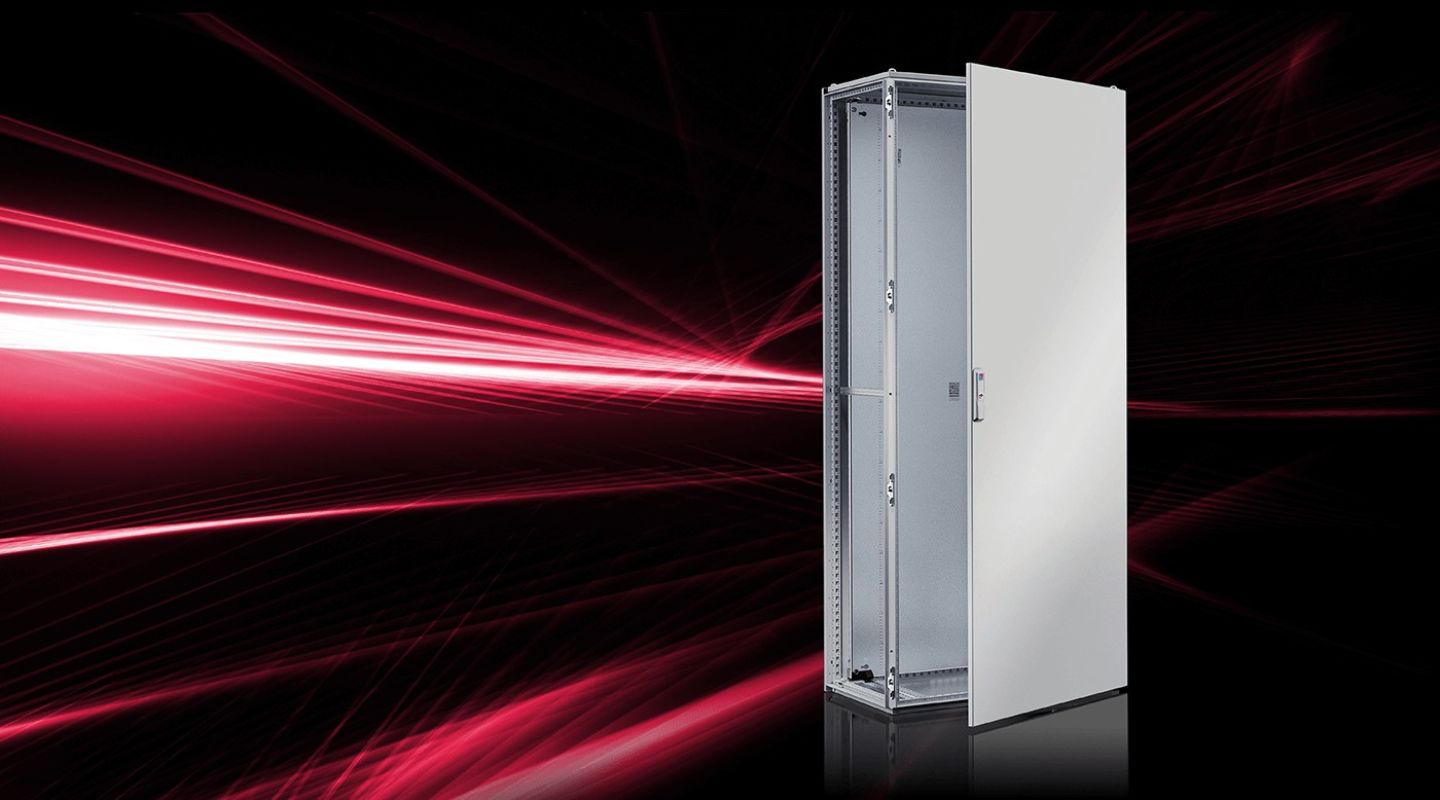

Plant engineers often choose bayed enclosures such as the VX25, even for smaller control applications. However, that is not always the best solution. After all, baying systems may be flexible, but that also makes them complex. They require side panels to complete the enclosure unit, they need to be sealed at the baying points, they require baying accessories and mounting plate infills, and each enclosure needs its own separate accessories such as base/plinth, handles, etc. That all costs time in assembly, and money, too. The good news is that there’s an easier way. The VX SE free-standing enclosure system from Rittal.
The VX SE offers quicker time-to-delivery and faster, streamlined assembly, enhanced reliability, greater safety, and compatibility with other Rittal systems. With advantages such as high protection categories, a wide range of sizes from 300mm depth to 1,800mm width, different material options in carbon steel and stainless steel, and simple and complete engineering, the VX SE is an ideal stand-alone solution to help panel builders, machine builders, systems integrators, and end users increase their productivity.
“We see in the market that there are applications where baying is not required, so customers will benefit from the versatility of the new VX SE free-standing enclosure system that is compatible with our TS 8 baying system,” states Troy Miesse, Industrial Automation Product Manager at Rittal. “That means that panel builders who transition to the VX SE do not have to make major adjustments in terms of engineering, assembly, or component installation — everything stays the same. Also, it is possible to combine VX SE with any TS 8 accessories, so panel builders can simply make use of existing components from the baying product portfolio.”
Reap the benefits of the VX SE for your project:
- Minimal ordering and assembly work due to the solid side panels and roof
- Body produced from a single piece for maximum stability and torsional rigidity
- Smart enclosure design from a single piece to help ensure good EMC properties
- Enhanced safety due to no gaps between side panels, roof, and frame
- High protection category up to IP 66/NEMA 4 or 4X
- Wide range of dimensions, up to a width of 1,800mm, can replace up to three bayed enclosures
- Depths of 300mm are ideally suited for applications in confined spaces
- TS 8 compatibility makes installation easy and engineering, assembly, and component installation remain the same
