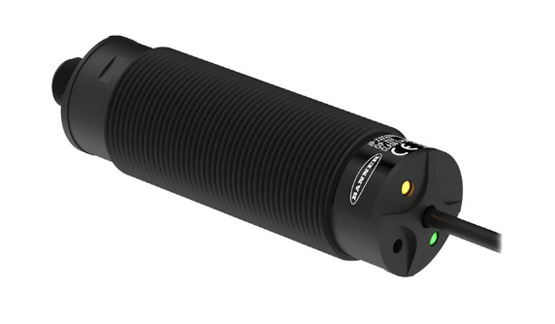

The new SPS30 AC/DC In-Line Power Converter is a compact, cost-effective device that makes it easy to connect sensors and indicators that use DC power to a production line using AC.
The SPS30 accepts 100–240 V AC at its input and converts that voltage to 24 V DC at its output. Specifically, it converts a DC sensor’s output to a Normally Open 4-amp electromechanical SPST relay for switching AC or DC loads. In addition, the converter’s AC input line is available to remotely teach a sensor or activate an actuator. Separate SPS30 models feature either 4-pin M8 or 5-pin M12 connectors.
- Converts universal 100–240 V AC line voltage to 24 V DC to power DC sensors
- PNP or NPN sensor output actuates a 4-amp SPST-NO (1 Form A) electromechanical relay, depending on model
- AC to DC TEACH line teaches a sensor or acts as a job input to a touch button
- ½-in. 20UNF 5-pin dual-key quick disconnect on AC side
- 150 mm (6 in.) PVC cable with an M12 or M8 quick disconnect available, depending on model number
