TERMSERIES relay modules and solid-state relays are all-around choices in the extensive Klippon® Relay portfolio. The pluggable modules are available in many variants and can be exchanged quickly and easily – they are ideal for use in modular systems. Their large illuminated ejection lever also serves as a status LED with integrated holder for markers, making maintenance easier. TERMSERIES products are particularly space-saving and are available in widths as small as 6.4 mm. Besides their versatility, they are impressive thanks to their extensive accessories and unlimited cross-connection possibilities.
You have unlimited cross-connection possibilities - in particular because of the multi-voltage input as well as the PUSH IN, screw and tension clamp connection. Choose from a large number of variants with interface relays and solid-state relays, and a large illuminated status-LED for difficult viewing conditions. Weidmuller's practical design is reflected in the high-quality design without any sharp edges. Readability of connection markings in a wide variety of mounting orientations.The all-rounder
Large range in 6mm terminal design
Ergonomic design
TERMSERIES – Electromechanical relays
Your benefits
• Slim design with 6.4 mm or 12.8 mm width
• 1 CO and 2 CO contact versions
• Screw clamp and tension clamp technology for fast + secure wire connection
• Input voltages from 5 up to 230V
• Unique multi-voltage input version for 24V-230V AC/DC
• Distinctive fiber-optic illuminated status display
• 5 cross connection levels
• Clear marking
• Pluggable relays and SSRs
• Wide range of accessories
• CE and cULus approved for Worldwide usage
In many situations int is important to perform test processes as quickly and easily as possible. Relay modules from the TERMSERIES are now also available with a test button. More information: TERMSERIES with test button »
Relays are used in different industries and applications for isolating and amplifying loads. With a lot of connection points per socket, they have a significant influence on the wiring time during installation. The lead time is significantly defined by the connection technology. More information: TERMSERIES PUSH IN »
The unique multi-voltage input of the TERMSERIES significantly reduces the number of required variants. The wide range input voltage between 24 and 230 V UC enables worldwide use in a wide variety of power systems. TERMSERIES relay modules with multi-voltage input can be used in plant construction as well as for retrofit solutions and are always perfectly adapted to the respective automation solution.
Relays with forcibly guided contacts are proven components in functional safety. Due to the forced guidance of the contacts, our TERMSERIES relay modules are the perfect choice for safe signal mointoring in many applications. More information: Functional safety »
Timing relays are used in automation technology in order to compensate for errors caused by high clock rates. Short pulses are extended are are reliably identified by downstream control components. More information: Timing functions »

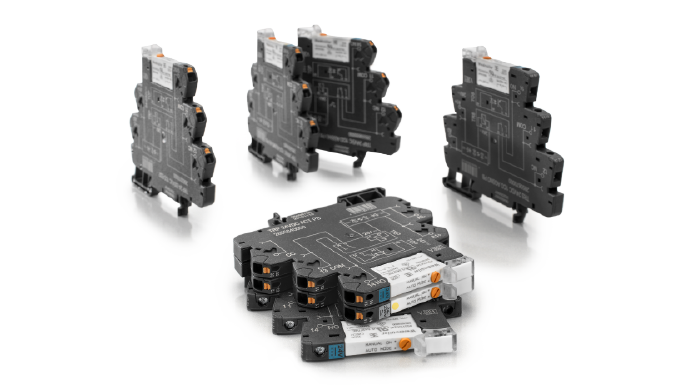

TERMSERIES relay modules with test button

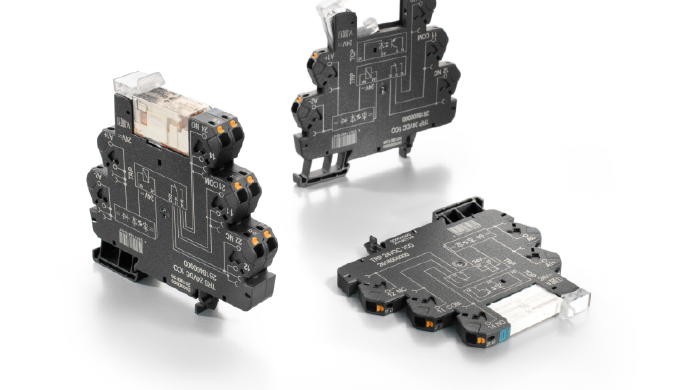

PUSH IN connection for the TERMSERIES

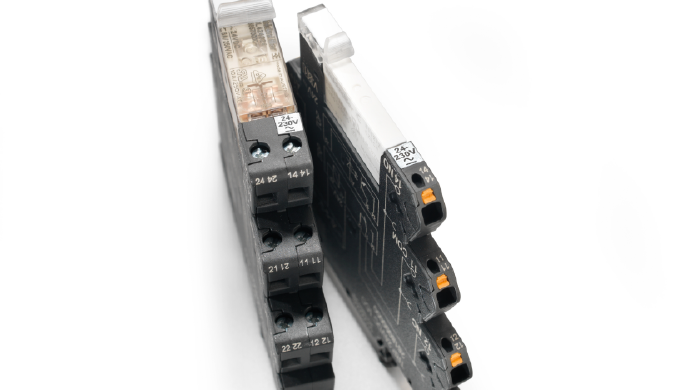

TERMSERIES with multi-voltage input from 24 to 230 V UC

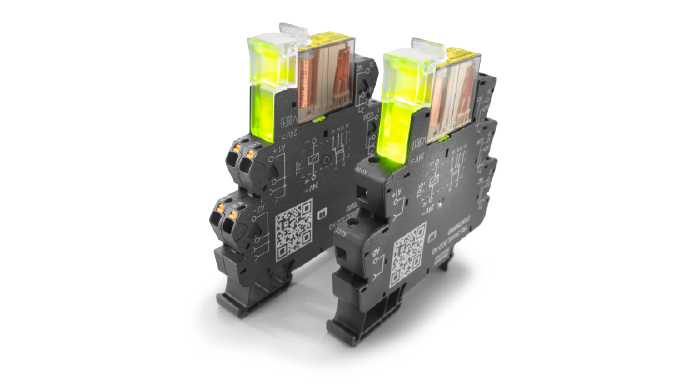

Relays with forcibly guided contacts in the TERMSERIES

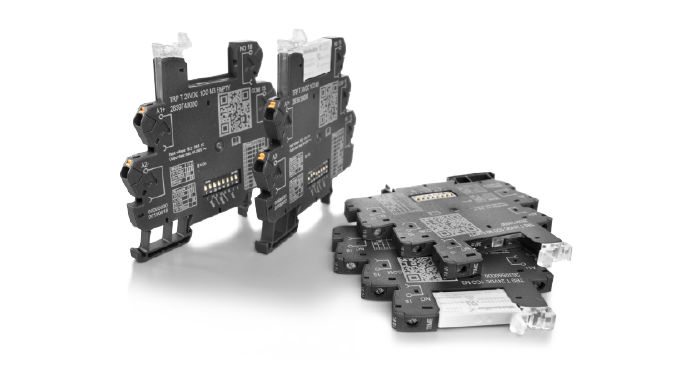

Integration of additional timing functions in the TERMSERIES
Switch to profitable –
with Klippon® Relay
Multifunctional relay solutions for efficient warehousing
Many products in Weidmuller's Klippon Relay portfolio have multi-voltage inputs, which reduces the width of your stock. Pre-assembled relay KITs save you even more logistics work by speeding up material management, storage and retrieval.
