Cabtite Cable Entry System - Time Saving Cable Management

Cabtite Cable Entry System from Weidmuller



The new Cabtite Cable Entry System for pre-assembled cables and cables without plugs offers maximum flexibility in the cable management of control cabinets, enclosures, and OEM equipment in manufacturing environments.

This flexible cable entry system helps speed up installation, facilitates service, and minimizes downtime.





+ - 30% COST SAVING Click to collapse

Up to 30% Cost Savings compared to conventional cable glands -
FIND OUT HOW!

+ - 50% SPACE SAVING Click to collapse

Up to 50% Space Savings with up to 40 lines in a single section

+ - 50% TIME SAVING Click to collapse

Up to 50% Shorter Installation Time compared to cable glands



The Cabtite cable entry system's unique design allows quick configuration of cable entry cut-outs – without tools and with reliable sealing in IP66 according to DIN EN 60529.

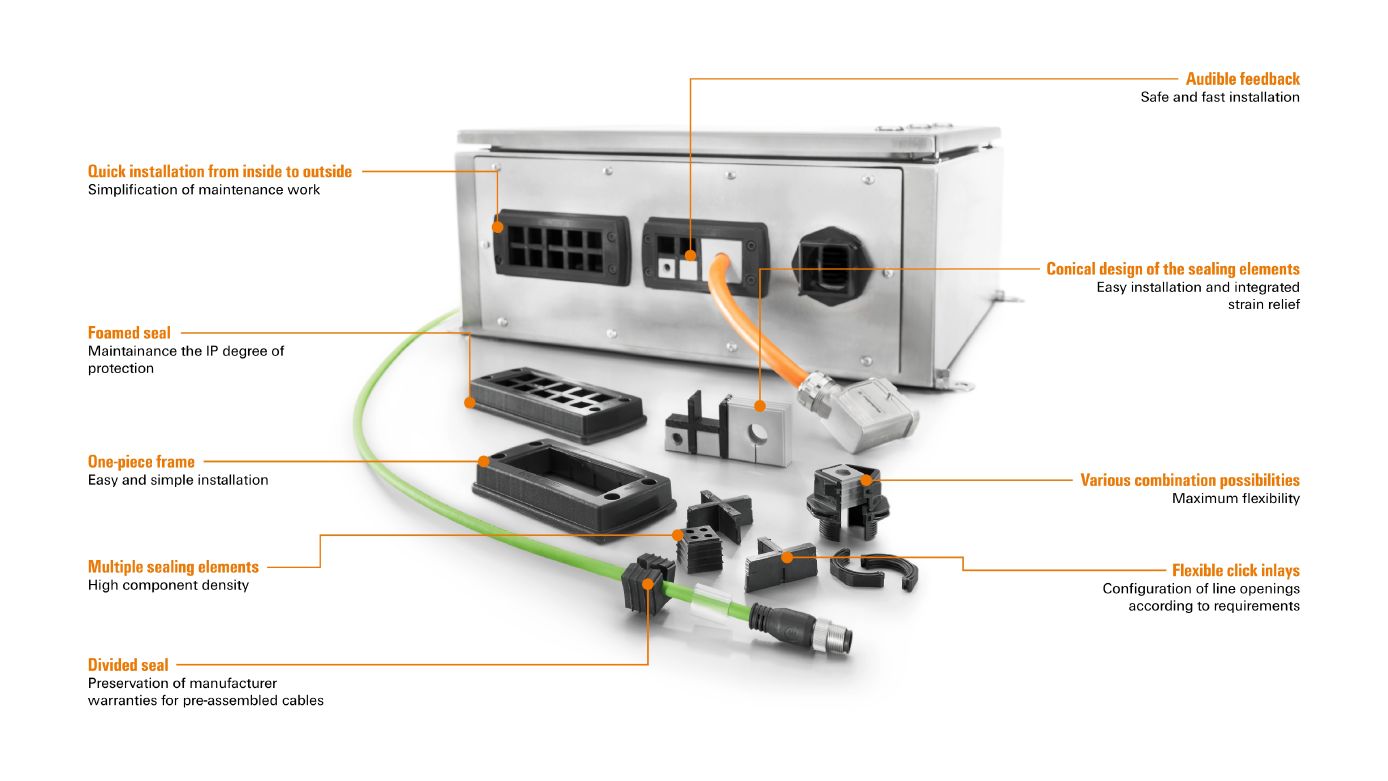

Its modular design includes three basic components:

1 – The frame (made of fiberglass reinforced plastic)
2 – Snap-in inlays (easily configure small to large entry points)
3 – Sealing grommets (full range from .06" - 1.4" diameter)


Key Advantages of the Cabtite Cable Entry System

  • Maximum flexibility and time savings
  • High IP protection class (IP66) as well NEMA 4x and 12
  • Integrated strain relief acc. to DIN EN 62444
  • Installation safety through simple handling with acoustic feedback
  • Preservation of the manufacturer‘s guarantee for pre-assembled cables
  • Fast adaptation of cable management in the event of system changes, service, and maintenance cases





ADDITIONAL CABTITE VIDEOS



+ - HIGH RELIABILITY Click to collapse

The foamed-in seals guarantee high IP and UL type protection.

+ - INDIVIDUAL ASSEMBLY Click to collapse

The basic modular components guarantee maximal flexibility and a wide range of variants.

+ - NO LOSS OF WARRANTY Click to collapse

No loss of warrenty due to the cut-in sealing elements, the cables and wires are precisely encased.




Space Saving Assembly from the Outside
with New FrontTight Frame Solution

With FrontTight, cables can now be routed from the outside through cabinet or enclosure walls, making cable management of assembled and non-assembled cables as flexible, reliable, and efficient as possible. It allows the quick configuration of the cable entry without any tool and with reliable IP66 sealing according to DIN EN 60529.





Cabtite's Unique Advantages

  • More than 40 cable combinations in a single frame.
  • Up to 30% cost savings compared to conventional cable glands
  • Fast, Easy Tool-less Assembly of inlays, sealing elements and cover
  • Simple disassembly and reassembly for moves, adds and changes
  • All Cabtite components are UL Recognized
  • Sealing elements are shared by both Cabtite and FrontTight families
