PS+ pressure sensors reliably and accurately measure pneumatic and hydraulic pressure levels. Turck's PS+ series of rugged and programmable pressure sensors increase system availability. The sensor shows the measured pressure on an integrated multi-color display while the outputs communicate critical process information to a control system.
The PS+ pressure sensors offer IO-Link capability for added functionality, auto-detect outputs, and a 340-degree rotatable sensor head to ensure simplified installation and commissioning. It also offers a stainless steel housing and measuring cell for maximum ruggedness. A large selection of process connections are available.
Simple commissioning: The PS+ pressure sensors automatically detect which signals the control unit or bus module are expecting. Different process data profiles provide maximum compatibility when integrating sensors into existing IO-Link systems.
The operator interface with capacitive touchpads and a multi-color display enables settings to be carried out quickly is protected by a lock mechanism from accidental operation.
The hermetically sealed keypad ensures greater resistance to dirt and liquids so that the sensors meet the requirements of ISO protection to IP6K6K, IP6K7 and IP6K9K. The PS+ pressure sensors are designed for pressure ranges up to 600 bar/8,702 psi relative pressure. It is available with proven ceramic measuring cells (PS310), in addition to metal measuring cells (PS510). The latter devices come with an overpressure resistance of up to seven times the nominal pressure. The sensors can optionally be fitted with peak pressure restrictors.
PS+ Pressure Sensor How-to Video
PS+ Pressure Sensor Applications
Monitoring cooling lubricants in machine tools
|
| Monitoring the supply of cooling lubricant | Products |

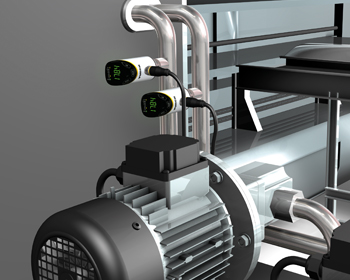

Controlling hydraulic pressure in pressing plants
|
| Controlling hydraulic pressure in pressing plants | Products |

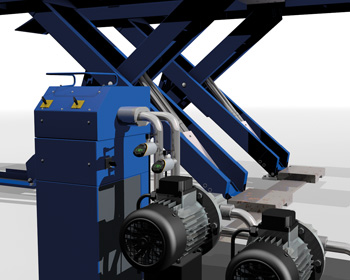

Measuring process pressure on scissor lifts
|
| Measuring process pressure on scissor lifts | Products |
