Tackle new systems integration and upgrades using EtherNet/IP™ – one of the most widely used and accepted communication protocols in industrial automation. It's available in standard Size 58 (58 mm), offering network and motion control capability for your most important applications.

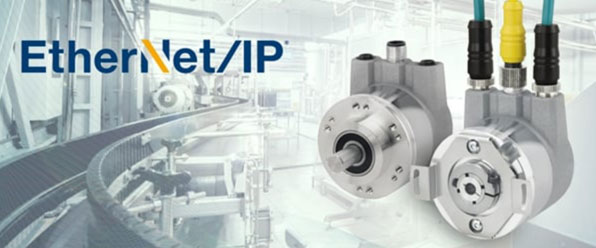

EPC Models A58SE shaft and A58HE blind hollow bore encoders can be configured precisely to fit your needs on the factory floor while maintaining the performance that EtherNet/IP compatibility offers.
EPC network-ready absolute encoders offer:
• Shaft (A58SE) or blind hollow bore (A58HE) models
• Single or multi-turn (16-Bit ST / 43-Bit MT)
• 58 mm (2.28”) diameter package
• No gears or batteries means a more compact, longer lasting, reliable design
• Energy-harvesting magnetic multi-turn technology
• Available with EtherNet/IP, EtherCAT®, and PROFINET® communication protocols.
The A58SE (shaft) and A58HE (blind hollow bore) models are both EtherCAT®, EtherNet/IP™, or PROFINET®-ready, multi-turn absolute encoders designed for heavy duty industrial applications.
They are particularly suited to applications where Ethernet-based connectivity is required, and the encoder must retain position information after power-off events.
Easily designed into a wide variety of system applications, both models plug directly into your network with minimal provisioning for rapid deployment, facilitating data exchange among myriad networked devices.
Both the A58SE and A58HE models retain absolute position information even after a power loss, facilitating speedy system recovery at start-up without the need for system rehoming.
Ready for Industry 4.0 and for the Industrial Internet of Things (IIoT), data exchange between these EtherNet absolute encoders and other applications has no influence on the control loop. The Model A58SE and Model A58HE are non-reactive and can work independently from the PLC or master, transferring data through network gateways to other automation networks and sites, and up to the cloud for analysis.

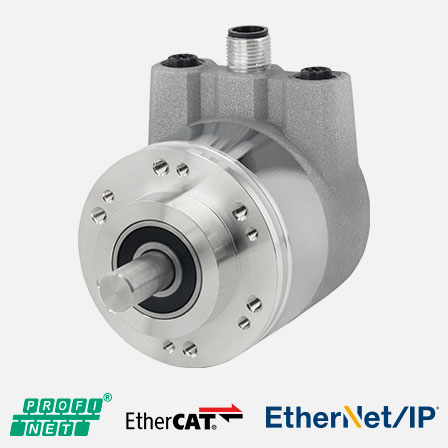

Model A58SE Ethernet Absolute Encoder
Single or multi-turn
EtherNet/IP, EtherCAT, or PROFINET communications
58 mm shaft encoder
» Download Model A58SE datasheet
Model A58HE Ethernet Absolute Encoder
Single or multi-turn
EtherNet/IP, EtherCAT, or PROFINET communications
58 mm bllind hollow bore encoder
» Download Model A58HE datasheet
